1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type

Brand Name : Brando

Model Number : SCG353A047

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100000 pcs per month

Delivery Time : Negotiation

Packaging Details : Inner Box, Carton, Pallet

Product Name : Pulse Jet Valve

Port Size : 1.5 Inch

Remote Or Integral : Integral Pilot

Body Material : Aluminum

Diaphragm Material : NBR

Pressure Range : 0.3 to 0.8MPa

Valve Type : Right Angle

Voltages : 220VAC, 24VDC

Contact Now

1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type

Aluminium diecast 2-way pulse jet valves are high flow, diaphragm operated angle body specially designed for reverse jet type dust collectors. The designs have a spring construction with only one moving part, high flow long life and fast opening combine to offer a superior design for the dust collector systems. The high-speed operation not only saves the compressed air but it provides the kind of shock wave necessary to free the dust from filter bags.

Technical Data of 353 Series Pulse Jet Valves:

Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Nominal Size
φ20mm
φ25mm
φ40mm
φ50mm
φ62mm
Working Pressure
0.3 to 0.8MPa
Environment Temperature
-5 to +55℃
Relative Humidity
≤85%
Operating Medium
Dry clean compressed air
Voltages
220VAC, 24VDC

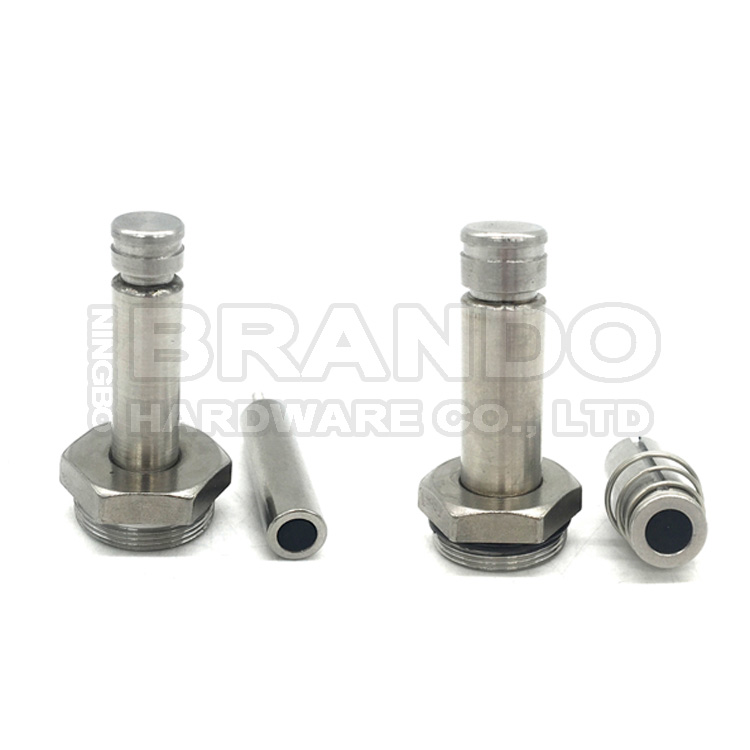

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

Dimension of SCG353A047 Pulse Jet Valve:

1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type

Video of SCG353A047 Pulse Jet Valve:

More ASCO Type Pulse Valve For You to Choose:

1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type

Right Angle Type Remote Pilot Type Immersion Type

1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type1.5 Inch Dust Collector Pulse Valve SCG353A047 ASCO Type

Diaphragm Solenoid Coil Armature Assembly Pulse Controller

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
