3'' Submerged BFEC Type NC DMF-Y-76S Pneumatic Pulse Jet Valve for Dust Collector System
DMF-Y-76S Submerged Electromagnetic Pluse Valve consists of Electromagnetic coil, Discharge hole, Small diaphragm, After the diaphragm cavity, Large diaphragm, Diaphragm chamber and Damping hole. Double Diaphragm Solenoid Valve Widely used in industrial bag dust removal filter.
Technical Data of electromagnetic pulse valve:
| Model No. | DMF-Y-76S |
| Port Size | G 3'' |
| Membrane Szes | Φ202 |
| KV | 165.84 |
| CV | 193.54 |
| Working Temperature | -25℃ to +80℃ or customized |
| Relative Humidity | ≤85% |
| Protection Class | IP65 |
| Service Life | Over one million times |
| Voltage | AC220V, AC110V, AC24V, DC24V or customized |

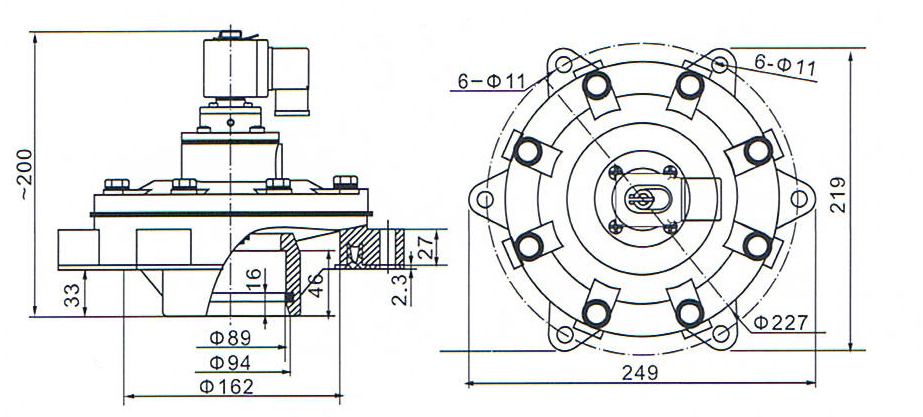

Overall Dimension of Pilot Solenoid Pulse Jet Valve:
Deconstruction Diagram:
Construction:
| Part Name | Material |
| Solenoid Coil | Copper Wire |
| Armature | 430FR Stainless Steel |
| Spring | 321 Stainless Steel |
| Diaphragm & Seals | NBR, HNBR, FKM, EPDM, Silicone, All Available |
| Valve Body | Aluminum Alloy |
Details :
More Details About DMF-Y-76S Solenoid Pulse Valve On Youtube:

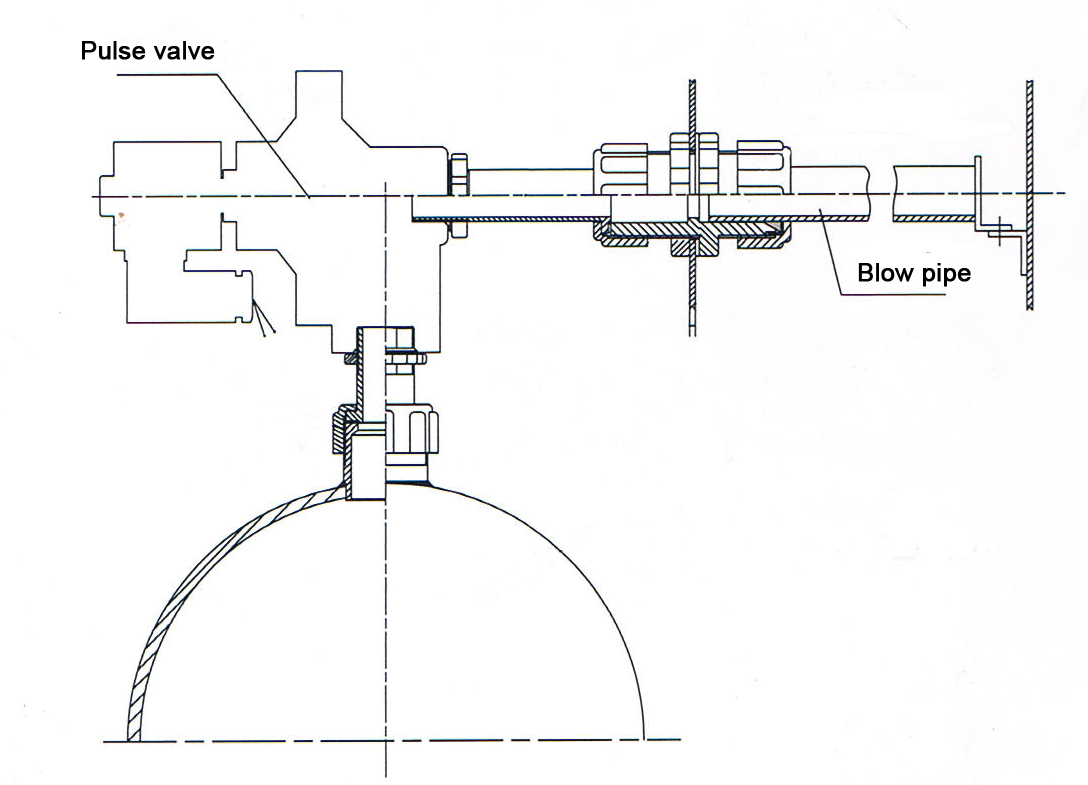

DMF Series Main Type Pulse Jet Valve and Its Installation Drawing:
1.Right Angle Valve
This kind of pulse valve with an included angle of 90° between inlet and outlet. It simplifies the connection between gas bag and blowing tube of a dust collector. It can provide stronger airflow and meet dust removing requirements. Like DMF-Z Series Pulse Valve.
2.Submerged Valve
This kind of pulse valve is installed directly on a secondary gas bag and achieves better circulation quality. The valve has less pressure loss, and is applicable to the operations with lower gas pressure.Like DMF-Y Series Pulse Valve.
3.Dresser Nut Valve
This kind of pulse valve is similar to the z-series valves, suitable for connection between gas bag and blowing tube of a dust collector. It has fixed nuts for installation purposes at the inlet and outlet end, for easier installation and application. Like DMF-ZM Series Pulse Valve.
4.Through Valve
This kind of pulse valve with an included angle of 180° between the inlet and outlet (central line of both inlet and outlet are the same straight line). Also, the inlet is connected to a gas storage tank, while its outlet is connected to a blowing tube. Like DMF-T Series Pulse Valve.
Installation:
1. Prepare supply and blowtube pipes* to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valve to inlet pipes and blowtube to valve, tighten dresser nuts.
5. Tanks and pipes must be independently supported from valve.
6. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
7. Apply moderate pressure to system and check for installation leaks.
8. Fully pressurise system.
9. Test fire and listen for proper actuation and crisp pulse noise.
Valve is not a structural component. Do not rely on valve to retain tanks or pipe.
