DC24V AC110V AC220V 4'' Inch Aluminum DMF-Y-102S Full Immerse Dust Collector Diaphragm Pneumatic Pulse Valve
DMF-Y-102S Solenoid Pulse Valve can used in any dust collector design ,designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems. Full Immersion design produces the strongest air pulse.Durable materials and wide temperature range enhance lifespan, Longer filter life.
Our manifold flat mount valves for reverse pulse jet systems in dust collectors are manufactured from die cast aluminum. They are full immersion valves, with the inlet port located right inside the compressed air manifold. Drawing the compressed air directly from the tank delivers improved pneumatic performance and a significant boost to the air pulses.
This kind of pulse valve is installed directly on a secondary gas bag and achieves better circulation quality. The valve has less pressure loss, and is applicable to the operations with lower gas pressure.
The full immersion technology makes them suitable for demanding applications.
Specification of DMF-Y-102S Sumberded Solenoid Pulse Valve:
| Model Number | DMF-Y-102S |
| Port Size | G 4'' |
| Number of Diaphragm | 2 |
| Working Media | Clean Air |
| Blowing Area | 70 - 90 ㎡ |
| Temperature Range | -25℃ to +80℃ or customized |
| Voltage | AC220V, AC110V, AC24V, DC24V or customized |
| Pressure | 0.1~0.8Mpa |
| Relative Humidity | ≤85% |
| Protection Class | IP65 |
Overall Dimension Embedded Diaphragm Valve DMF-Y-1002S:

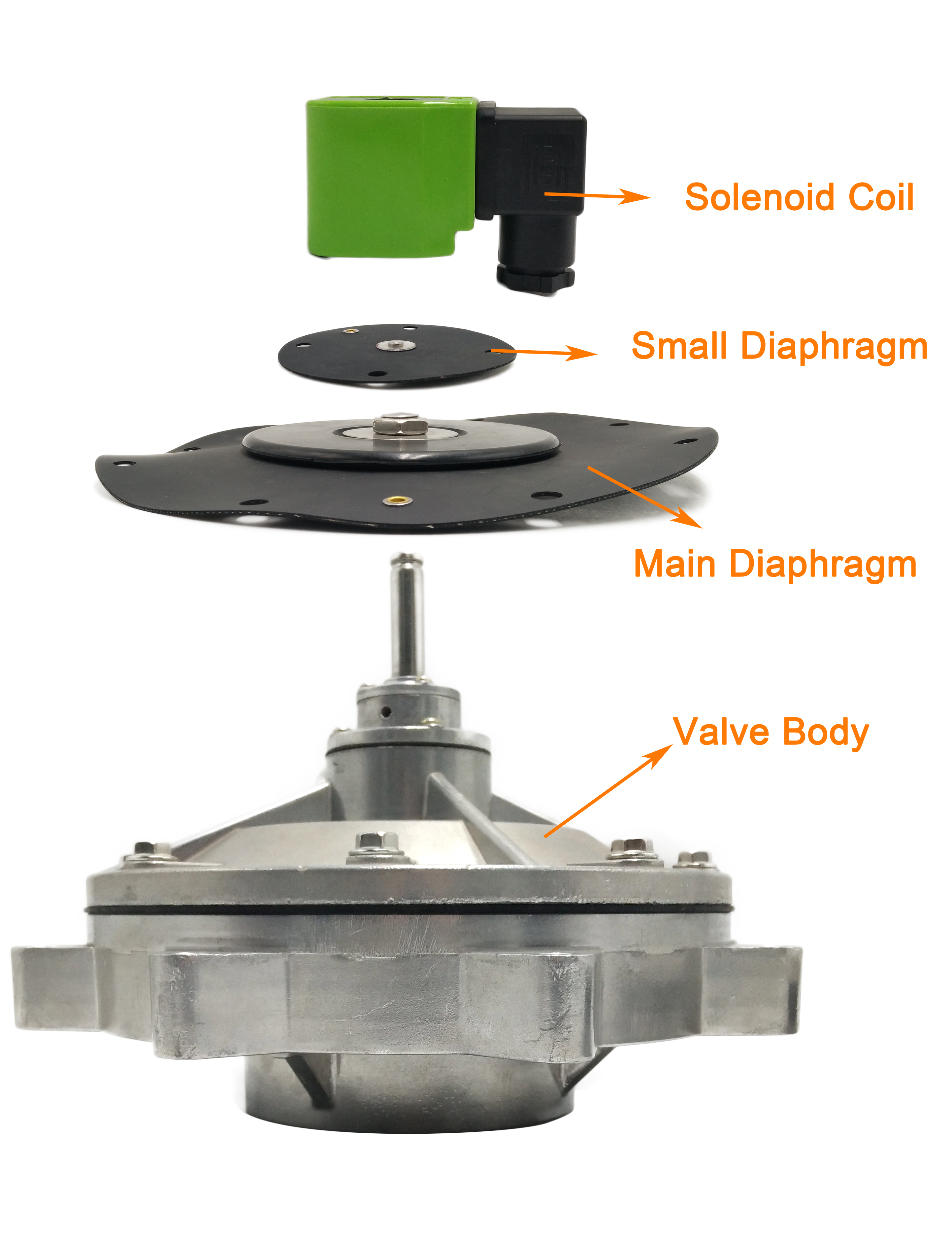

Deconstruction Diagram of DMF-Y-102S Pulse Valve for Dust Collector:
| Part Name | Material |
| Solenoid Coil | Copper |
| Armature | 430FR Stainless Steel |
| Diaphragm & Seals | NBR, HNBR, FKM, EPDM, Silicone, All Available |
| Spring | 321 Stainless Steel |
| Valve Body | Aluminum ADC12 die casting |
Details About DMF-Y-102S Double Diaphragm Valve:
More Details About DMF-Y-102S Electromagnetic Valve for Bag Filtration On YOUTUBE:
Application
These manifold flat mount valves are suitable for use in dust management systems in all types of industries and processes, including:
cement production
mining applications
silo and conveyor systems, bulk goods handling
general industrial dust collection
improving indoor workplace air quality
preventing harmful emissions
power industry: protecting boilers and gas turbines from dust particles
Installation
1.Tanks and blowtubes must be independently restrained.
2. Make electrical connections to solenoid.
3. Ensure compressed-air supply is dry and free from oil and dirt.
4. Check all cleaning system components are secure before applying pressure.
5. Apply moderate pressure and check for leaks.
6. Fully pressurise system.
7.Test fire and listen for proper actuation and crisp pulse noises.
