2 Inch Goyen Type Normal Closed NBR Diaphragm Flanged Connection CAC45FS Pilot Operated Solenoid Valve
DESCRIPTION:
Very high performance diaphragm valve with flanged inlet port and slide seal outlet port for easy valve installation and removal. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.
MAINTENANCE:
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies.Pressure
and power should not be reapplied until the valve has been fully assembled.diaphragm and pilot inspection should be conducted annually.
FS Series Parameter Table:
| Model | CAC25FS | CAC45FS |
| Working Pressure | 0.3MPa-0.8MPa | 0.3MPa-0.8MPa |
| Voltage | AC24V, AC110W, AC220V, DC24V |
| Inlet and Out Pipe Size | 1 1/2'' IN, 1''OUT | 2'' IN, 1 1/2'' OUT |
| Valve Type | diaphragm valve |
| Action | pilot operated |
| Connection Type | flanged inlet port |
| Body Material | aluminum ADC12 |
| Seal Material | NBR(Common) |
Goyen Type CAC Series Electromagnetic Pulse Valve Kits Information:
| Model | Nitrile | Viton | Includes |
| CAC25FS Diaphragm kit | K2512 | K2513 | Diaphragm kits include main diaphragm and spring |
| CAC45FS Diaphragm kit | K4516 | K4519 |
| CAC25FS Pilot kit | K0380 | K0384 | o-ring,armature assembly.armature spring,ferrule |
| CAC45FS( Pre 9/98 models)Pilot kit | K0381 | K0382 | o-ring,pilot shuttle,armature assembly,armature spring,ferrule |
| CAC45FS(Post 9/98)Pilot kit | K0390 | K0391 | o-ring,pilot shuttle.armature assembly.armature spring,ferrule |
| CAC25FS Outlet seal | G690127 | G690127-2 | Outlet seal |
| CAC45FS Outlet seal | G690864 | G690103-2 | Outlet seal |
Dimension Diagram:
Goyen Type CAC Series Electromagnetic Pulse Valve Detail:

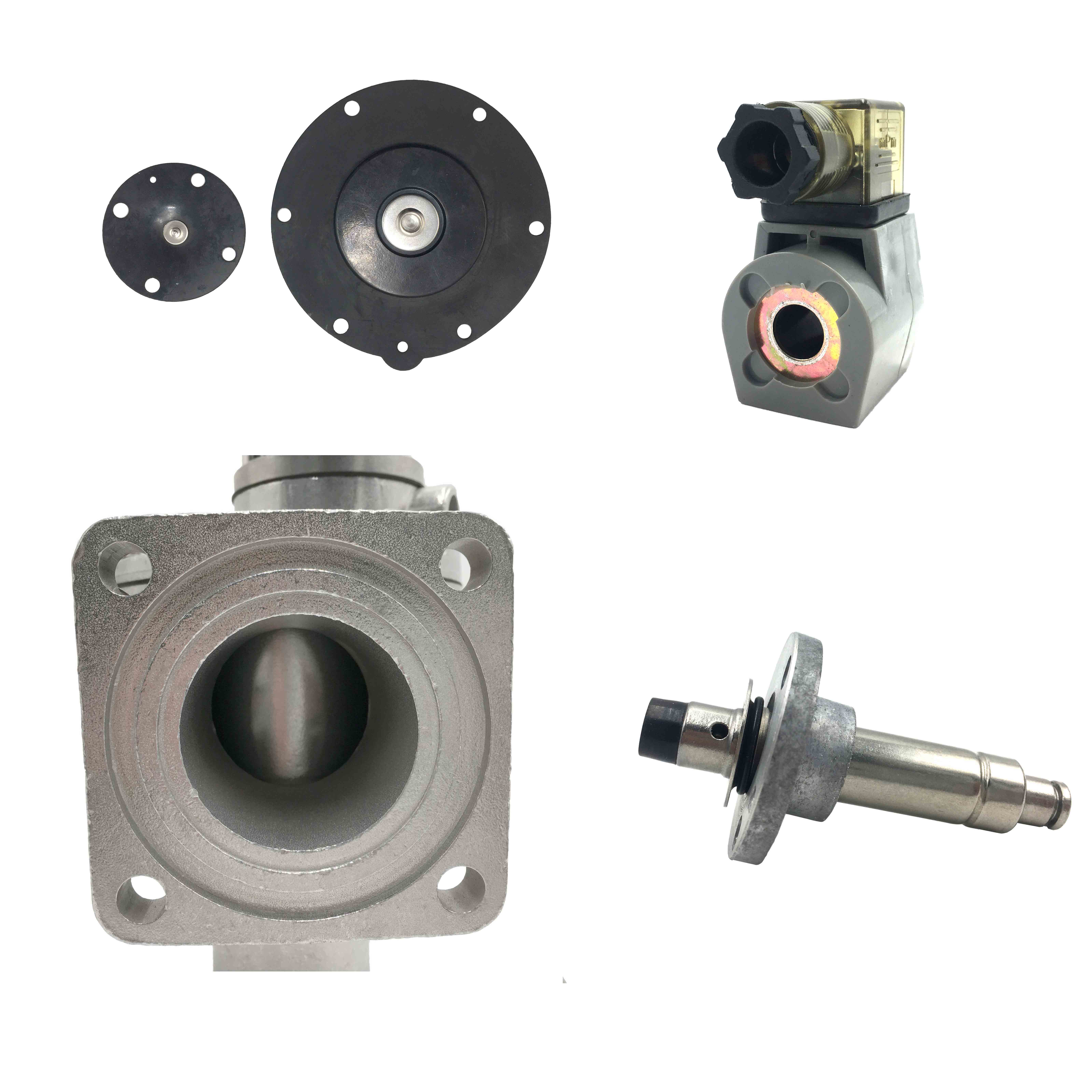

Tips: All accessories can be sold separately as repair parts (Diaphragm, Solenoid Coil, Armature Assembly)
Goyen Type CAC Series Electromagnetic Pulse Valve Application:
Youtube Video Of Goyen Type CAC45FS Solenoid Valve For Dust Collector:
Due to pulse valve diaphragm needs from time to time opening and closing action is a flexible mechanism to control the air circulation, has good flexibility and requirements, also demanded the sealing as high as possible, so the pulse valve diaphragm material is directly related to the service life of pulse valve diaphragm and using effect, in other words, the pulse valve diaphragm is good or bad will directly affect the working stability of pulse bag filter soot cleaning system, is directly related to the use of dust removal equipment cost, general pulse valve diaphragm has the commitment, the number of service life or actions using high-quality pulse valve diaphragm can directly reduce the cost of the use of dust removal equipment.
