1 1/2'' DN40 Pneumatically Operated 2/2 Way Angle Seat Valve
Air actuated or pneumatically controlled angle seat globe piston valves are designed to work from a controlled compressed air supply, which is utilised to directly control the opening and or closing function of the angle valve. However just about any clean, inert non corrosive liquid or gas controlling media can be used so long as valve actuator and controlling solenoid valve materials on construction are suited.
Angle seat valves consists of two main parts; the valve body and seals to control the media flow and the valve controlling head or actuator; that receives the compressed air supply, which are joined together via a well packed (sealed) stem.

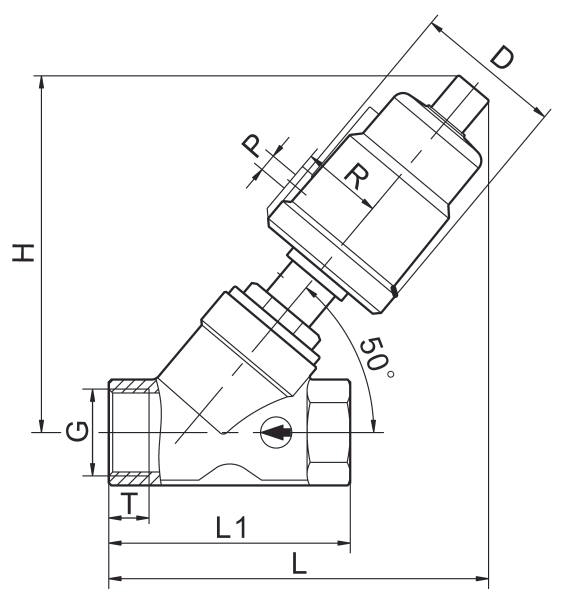

Main Dimension of Angle Seat Valve:
Stainless Steel Body With Stainless Steel Actuator
Technical Data of Angle Seat Valve:
| Medium Temperature | |
| Ambient Temperature | |
| Max. Working Pressure Range | |
| Working Medium | Netral and Aggressive Liquid, Gas |
| Working Pressure | |
| Body Material | |
| Seal Material | |
| Connection Size | 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4'' |
| Port Connections | Threaded, Flanged, Welded, Clamp |
| Nominal Diameter | DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100 |
| Safety setting in case of power failure | Normally Closed, Normally Open |
Angle Seat Valve Disassembly Display:
Brando Factory Valve Production:
More Angle Seat Valves for you to choose:
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
