Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter

Brand Name : BRANDO

Model Number : RCA76T

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 165000 pieces per month

Delivery Time : 4-7 days

Packaging Details : Inner Box,Carton,Pallet

Port Size : 3''

Series : T

Pipe Connection : Threaded

Valve Structure : Right Angle Type

Body Material : Aluminum Alloy

Diaphragm Material : NBR, FKM

Workinｇ Pressure Range : 0.3 to 0.8 MPa

Contact Now

3 Inch RCA76T Goyen Type Threaded Pulse Jet Valve For Bag Filter

T Series Pulse Jet Valves (3/4", 1", 1.5",2", 2.5", 3" port sizes) High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90 degrees to inlet. Suitable for: Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

Construction:
1. Body: Aluminium (diecast)
2. Ferrule: 304 SS
3. Armature: 430FR SS
4. Seals: NBR or Viton
5. Spring: 304 SS
6. Screws: 302 SS
7. Diaphragm Seat: Nylon, NBR or Viton

Dimension of RCA76T Pulse Jet Valve:

Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag FilterGoyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter

Technical Data of T Series Pulse Jet Valves:

Model NO
RCA15T
RCA20T
RCA25T
RCA35T
RC45T
RCA50T
RCA62T
RCA76T
Office Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1 1/2''
1 1/2''
2''
2 1/2''
3''
Diaphragm Number
1
2
Pilot Size
1/8'', 1/4''
Working pressure
0.3 to 0.8MPa
Fluids
Air
Diaphragm Material
NBR or FKM
Body Material
Aluminum Alloy
Valve Structure
Right Angle (Outlet is at 90° to Inlet)

Ordering Code of T Series Pulse Jet Valves:

Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter

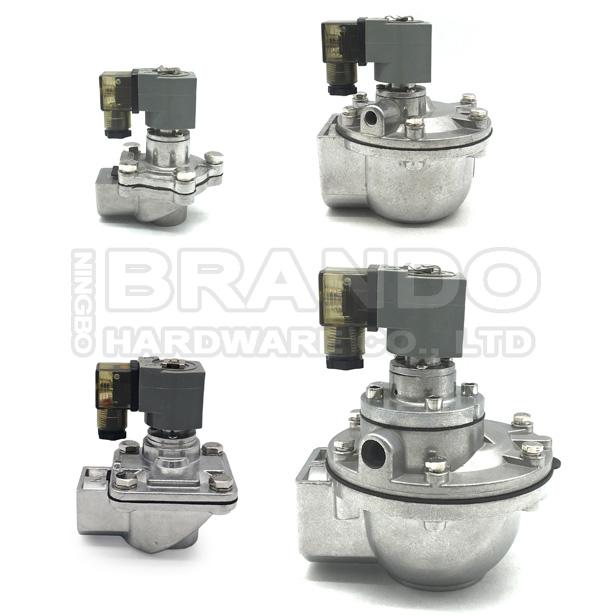

More Goyen Type Pulse Jet Valves for you to choose:

Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter
T Series DD Series MM Series FS Series
Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter Goyen Type RCA76T Threaded Pulse Jet Valve 3 Inch For Bag Filter

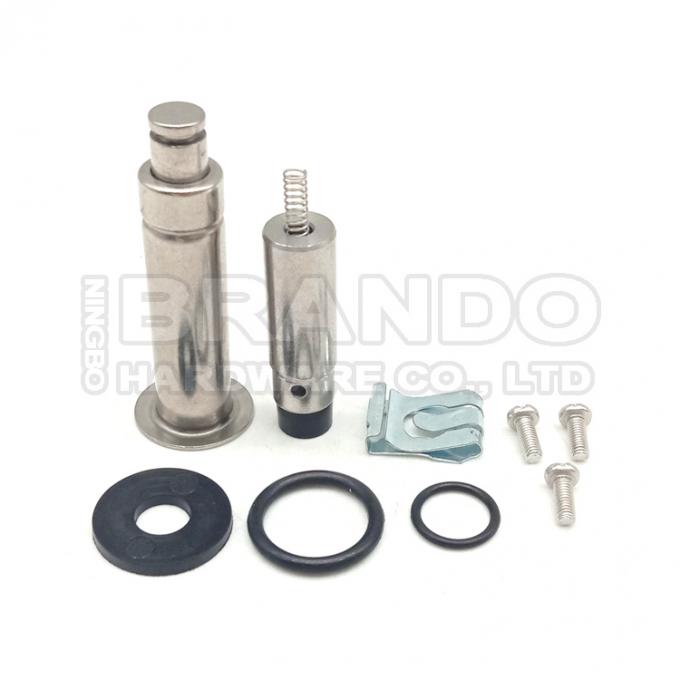

RCA Series Solenoid Coils Solenoid Armature Pulse Controller
