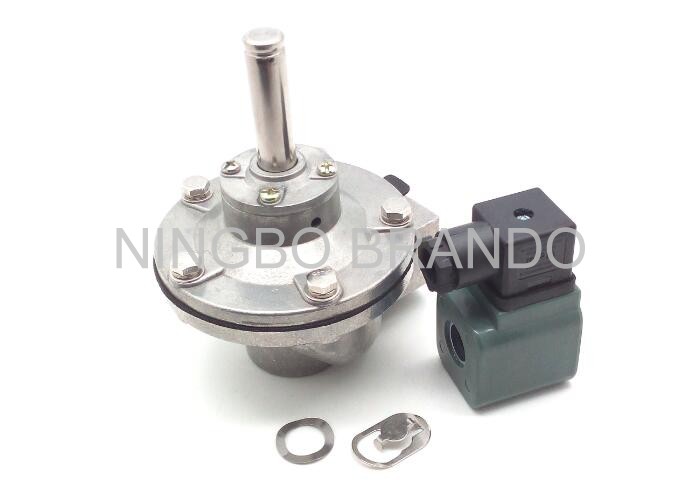

430FR SUS304 Brando Aluminum Clean Air solenoid pneumatic valve , Pulse Jet Valve

430FR SUS304 Brando Aluminum Clean Air Pneumatic Pulse Jet Valve

The 430FR SUS304 Brando Aluminum Clean Air Pneumatic Pulse Jet Valve specially designed for reverse jet-type dust collector systems. We also provide the diaphragm separately with high quality products and services. The diaphragm with high quality and it can be used for a long time, more than 3 years.

Pulse Valve Technical Specifications:

1. Fluid Media: clean air

2. Working Pressure: 0.3--0.8Mpa

3. Voltage/Current/Temperature Range:

DC24V/0.8A/-25~80℃ (-13~176 ℉)

AC110V/0.46A/-25~150℃ (-13~302 ℉)

AC220V/0.23A/-25~230℃ (-13~446 ℉)

4. Relative Air Humidity: ≤85%

5. Diameter: φ25

6. Standard Coil and Class of Insulation: IP65

7. Diaphragm Cycle Life: more than 1 million times or more than 3 years

8. Port Size: 1"

Features of Pulse Jet Valve:

1, fast opening/closing

2, high quality parts material to ensure valve cycle life

3, high cycle life

4, high flow cv(s) to 140 for effective bag cleaning

Overall dimensions:

We can also produce diaphragms separately

Short Information:

1, all volatge available, 110v AC, 220v AC, 24v AC, 24v DC

2, ambient temperature range: -25~80℃

3, working pressure 0.3~0.8MPa

4, made of high quality enamelled wire solenoid coil, imported magnetic stainless steel 430FR armature assemblies, high grade dia casting ADC alumininum

Some Detailed Photo about pulse valve:

FAQ:

Lifetime service:

Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.

For OEM products:

We will finish the production within 20 days after payment has been confirmed.

About delivery and shipping:

We will choose the delivery way as you required: by sea, by air, by express ect. Save your cost is our

mission.

Integrity:

All the warrenty and guarantee from us will be put into come true.

Quality control:
All the products are calibrated with real working condition, and tested before shipping as qualified product.

About samples:
We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea, by air, by express ect. Any question about samples, please contact us.

The High Quality Package of our company:

Welcome your any question, we will response at once. We also can produce as customized.

Welcome your drawing or sample.
